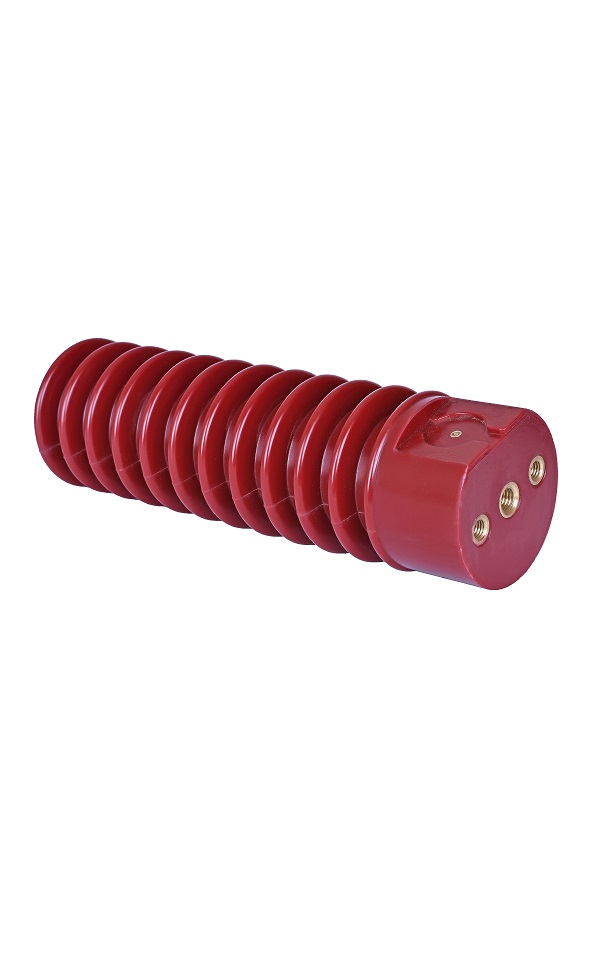

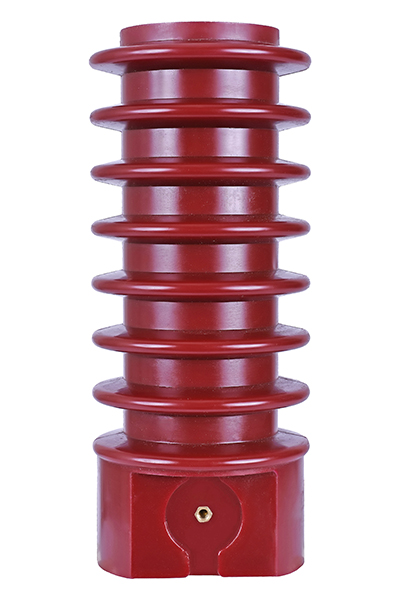

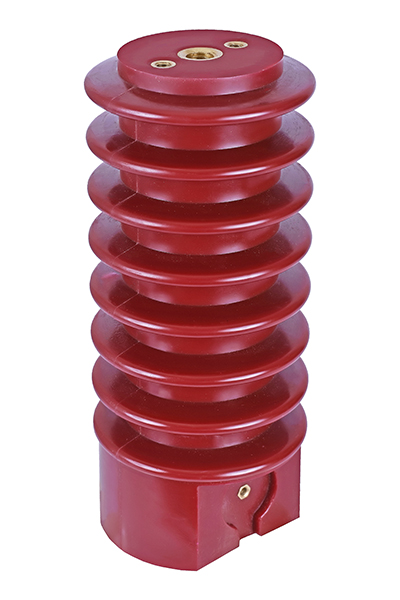

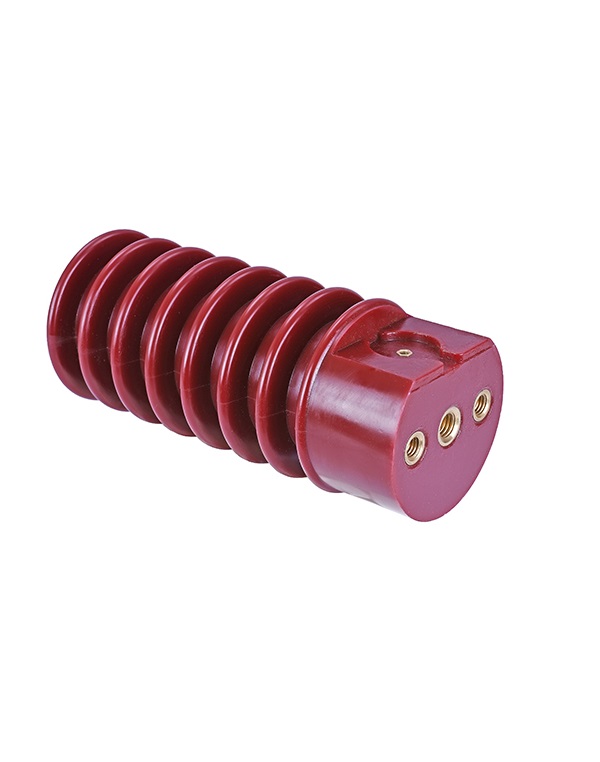

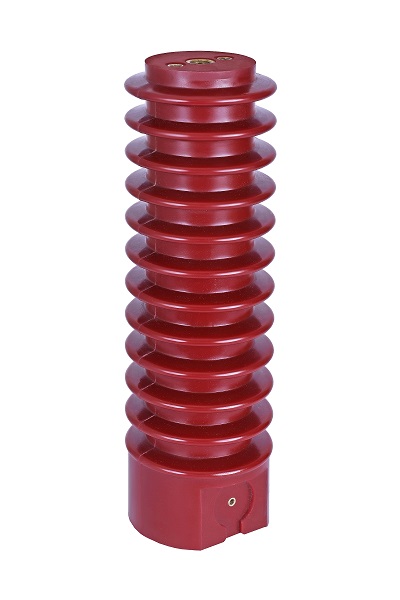

They are made of epoxy resin with Brass fitting. The capacitive insulators are for indoor. Use in environment with max temperature of 85°C. These insulators, transmits signals to voltage phase indicator and are used as
insulating supports for electrical equipment, bus bars, fuses & etc.

■- Bus bar and MV equipment installation with three screws at the top of insulator.

■- insulator is installed with three screws on the plate.

■- For easy installation and maintenance, LV wiring of the side.
