Description:

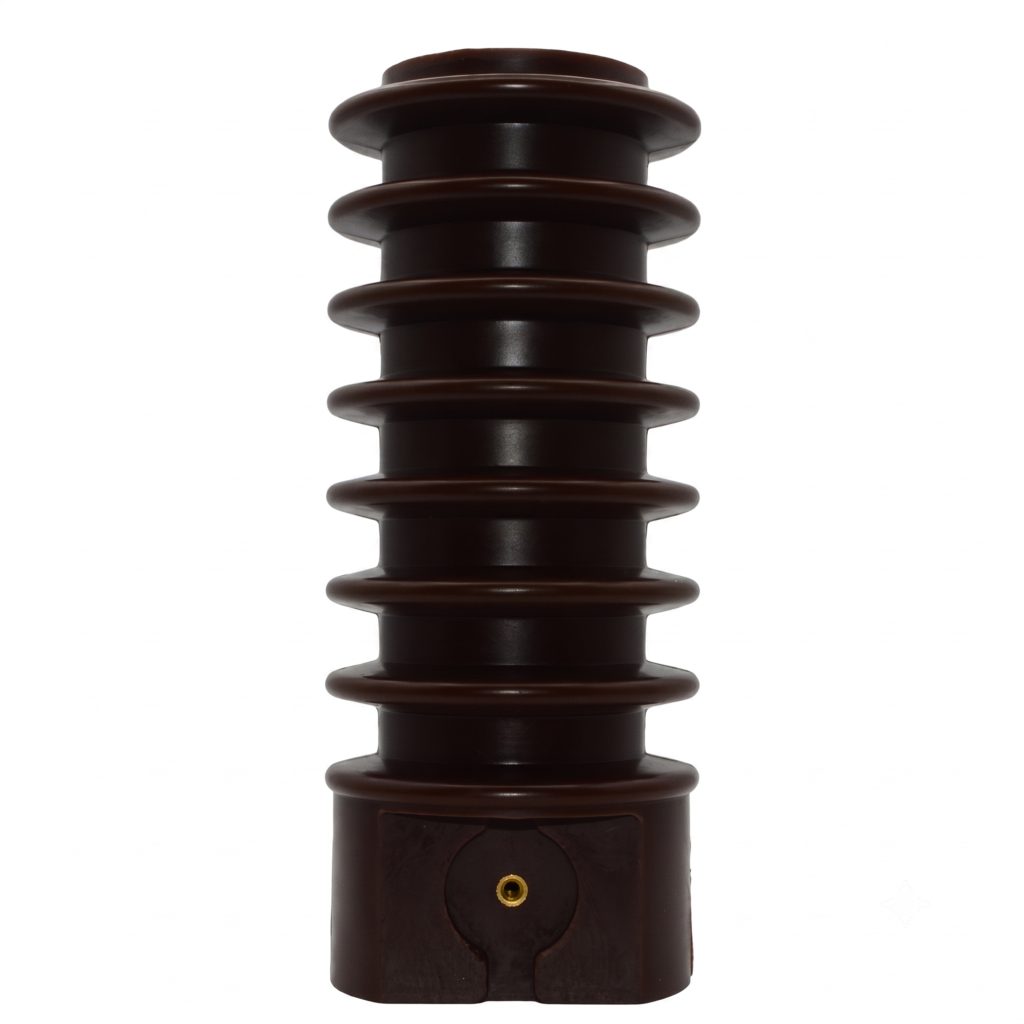

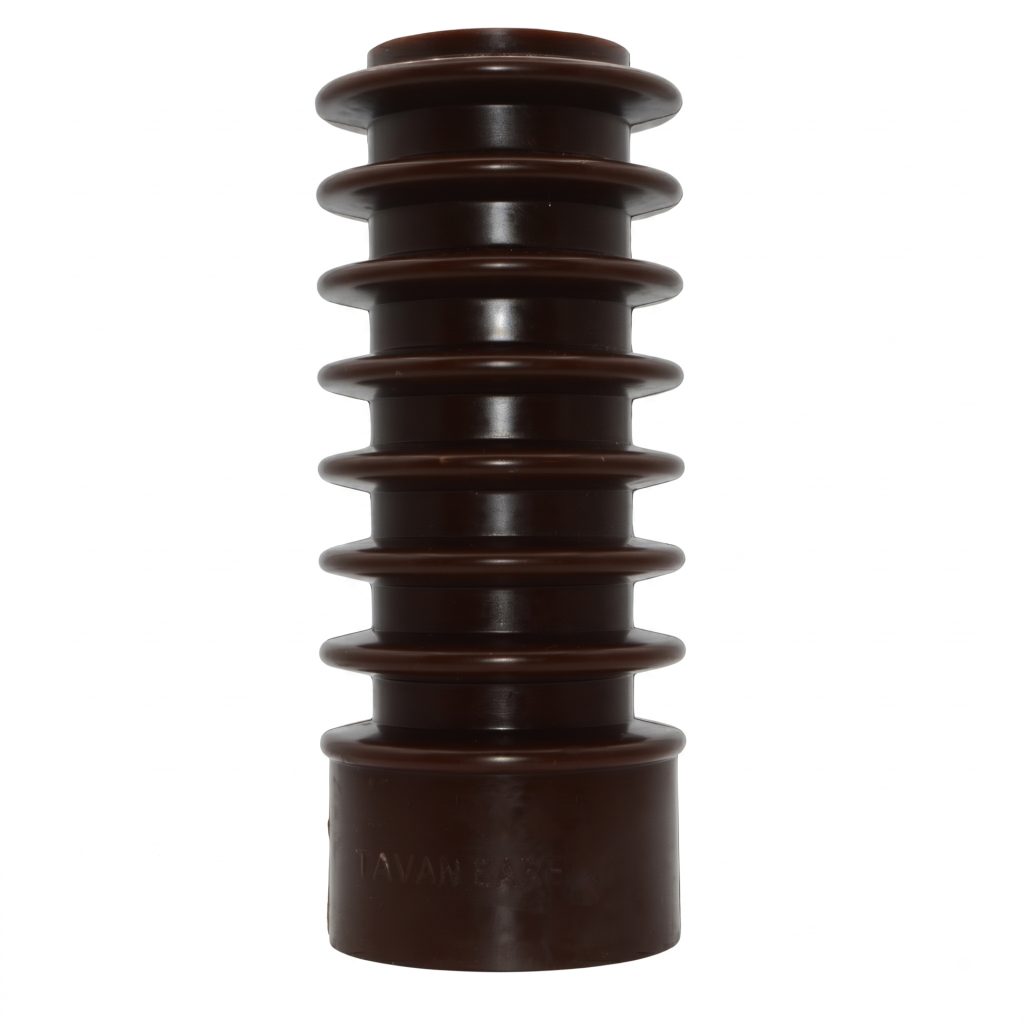

They are made of epoxy resin With Brass fitting.
The capacitive insulators are for indoor.
Use in environment with max temperature of 85°C.
These insulators, transmits signals to voltage phase indicator and are used as insulating supports for electrical equipment, bus bars, fuses & etc.
Reference Standards:
IEC 60660 – IEC 60273 -IEC60137
Installation:

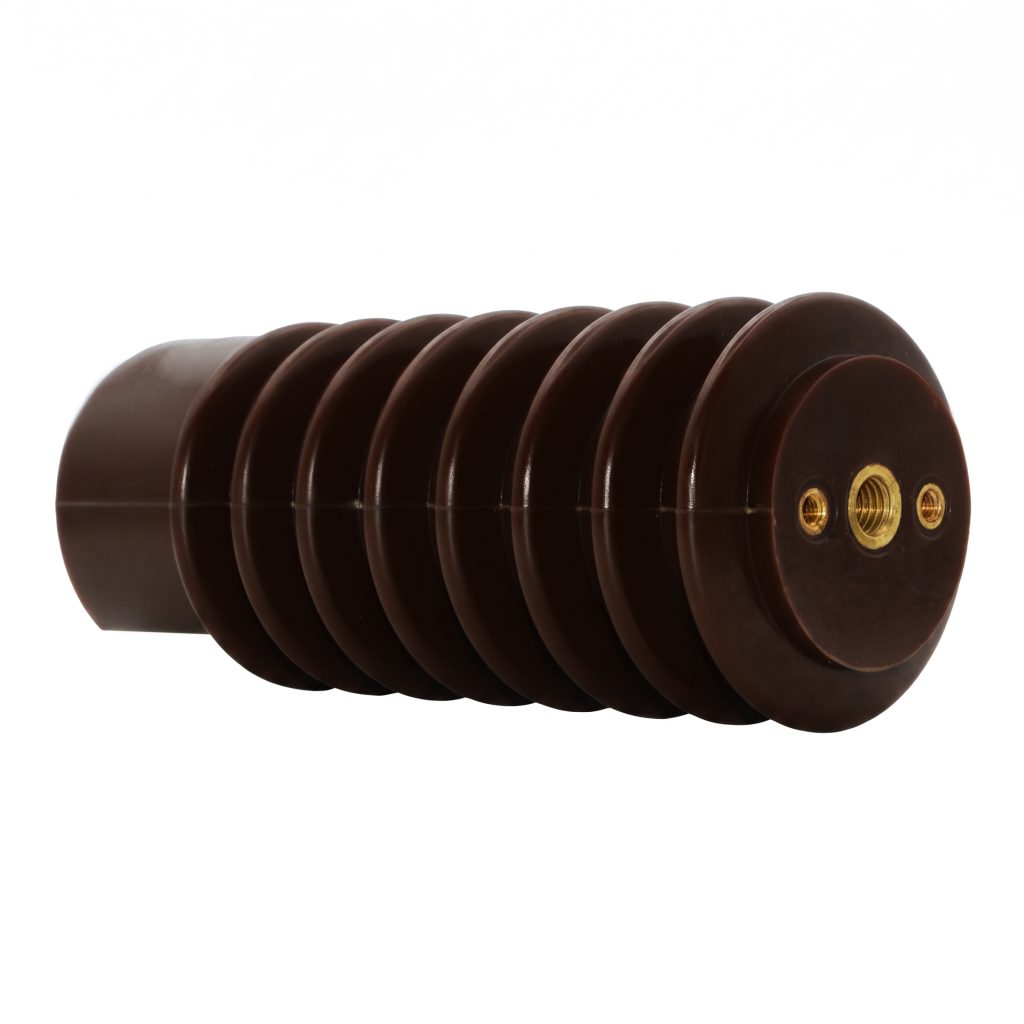

Bus bar and MV equipment installation with three screws at the top of insulator.

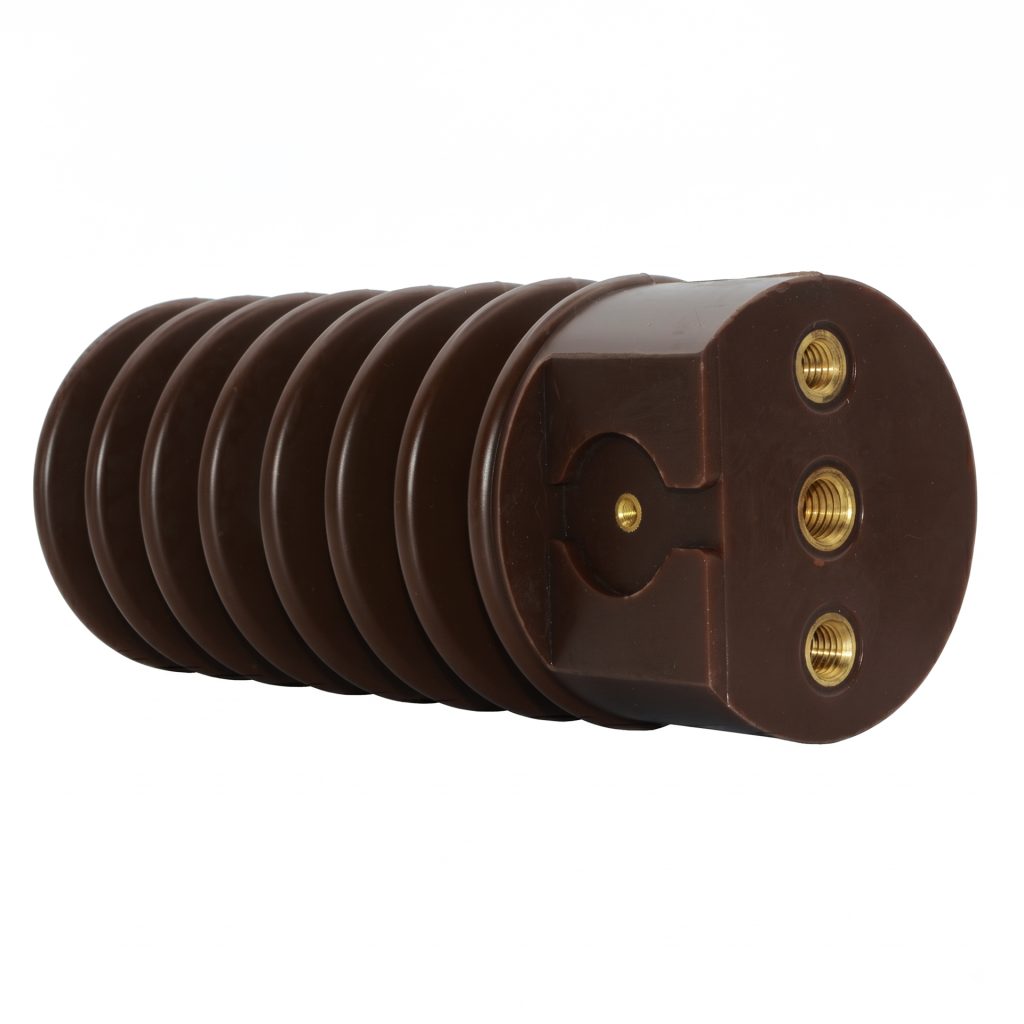

insulator is installed with three screws on the plate.
For easy installation and maintenance, LV wiring of the side.
Technical data:
Rated operating voltage24KV
Dry power frequency withstand Voltage 50 KV/1 min
Lighting impulse withstand voltage 125KV
PD 10pc>
Creepage distance 352mm
Insulator dimensions 210mm
Ceramic capacitor
Routine tests:
Test Rated operating voltage
Test Dry power frequency withstand Voltage
Test PD
