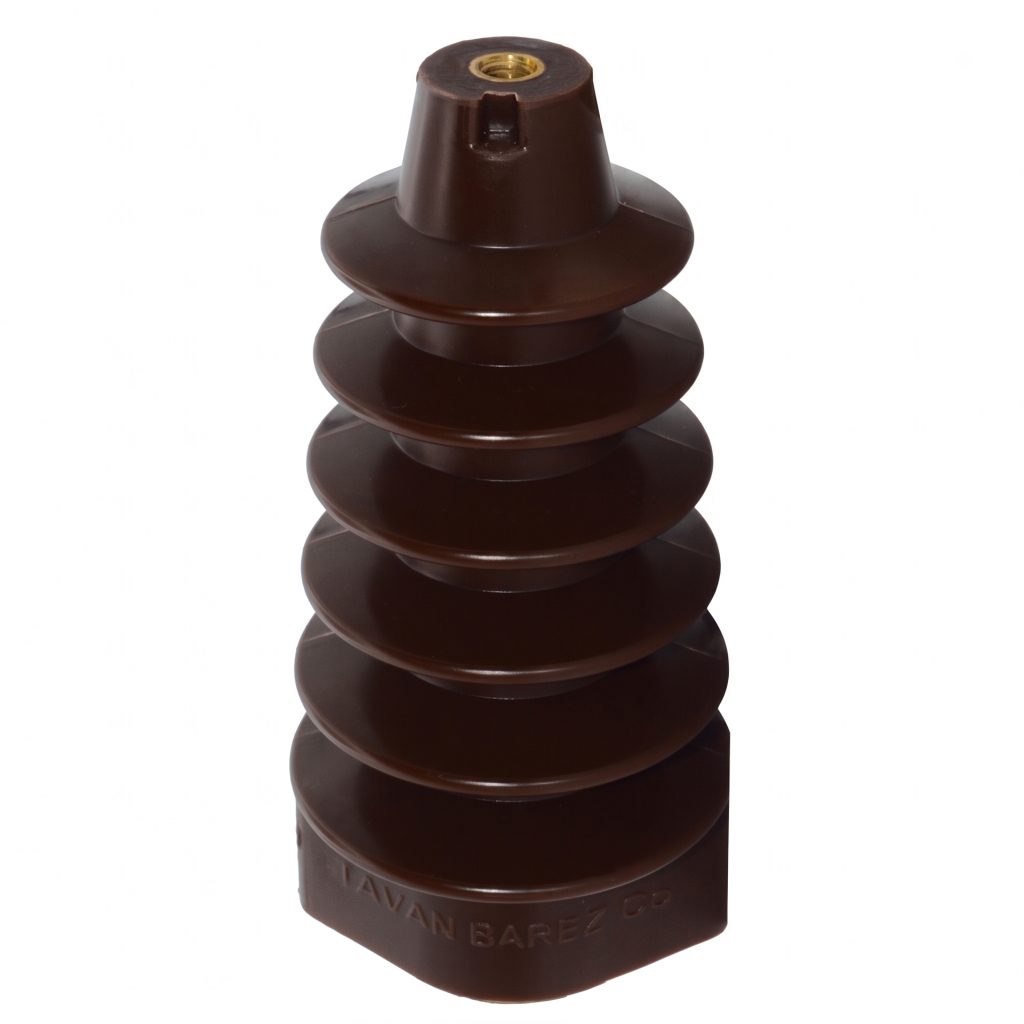

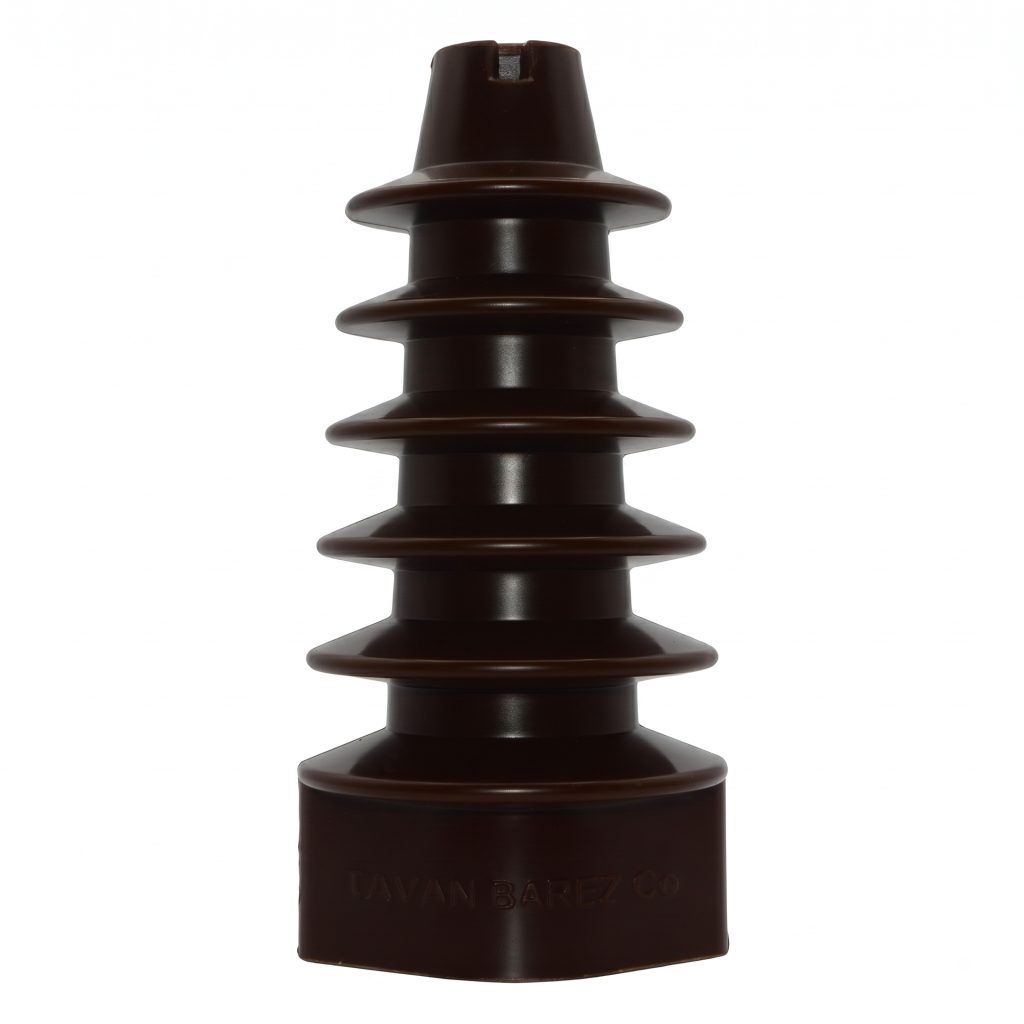

Description:
They are made of epoxy resin With Brass fitting.
The capacitive insulators are for indoor.
Use in environment with max temperature of 85°C.
These insulators, transmits signals to voltage phase indicator and are used as insulating supports for electrical equipment, bus bars, fuses & etc.
Reference Standards:
IEC 60660 – IEC 60273 -IEC60137

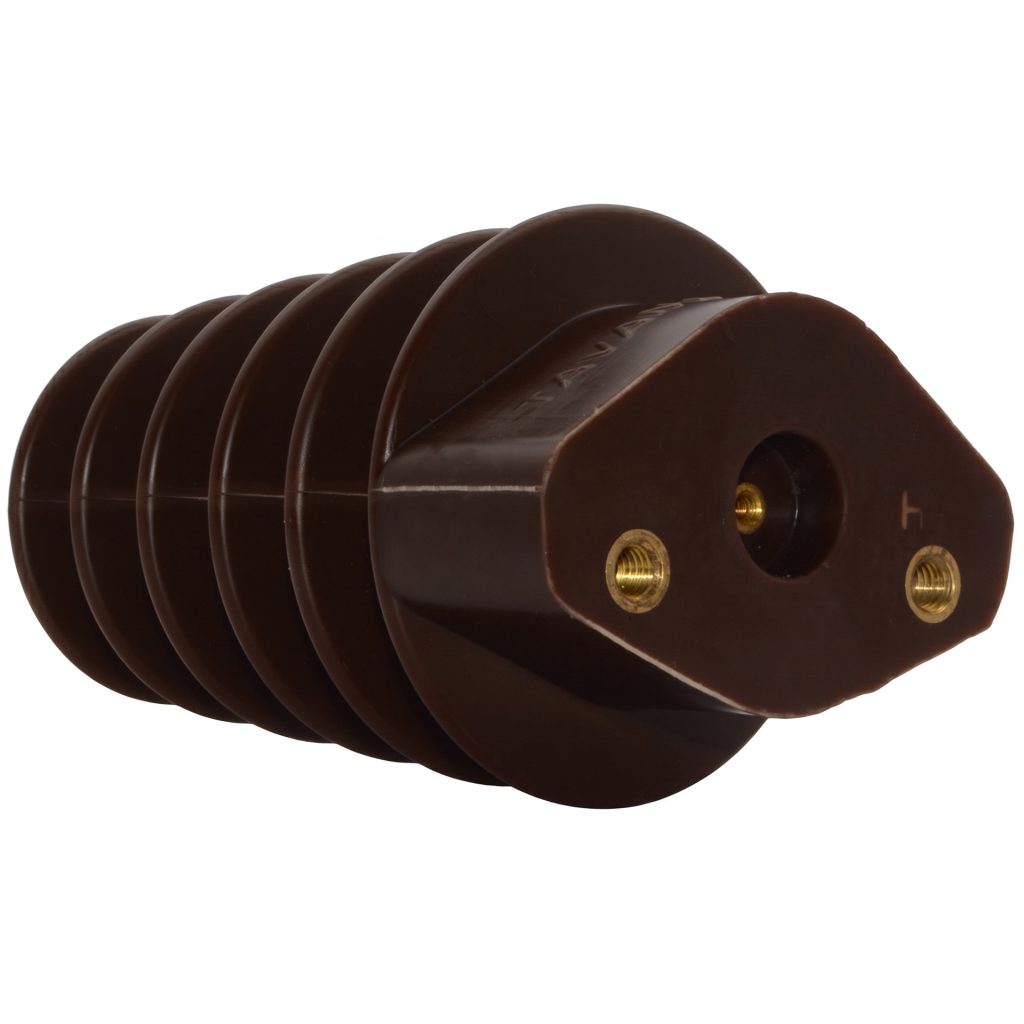

Installation:
Bus bar and MV equipment installation with one screw at the top of insulator.
insulator is installed with two screws on the plate.
Signal output screw below
Technical data:
Rated operating voltage24KV
Dry power frequency withstand Voltage 50 KV/1 min
Lighting impulse withstand voltage 125KV
PD 10pc>
Creepage distance 305mm
Insulator dimensions 185mm
Ceramic capacitor
Routine tests:
Test Rated operating voltage
Test Dry power frequency withstand Voltage
Test PD
